Elan GT5

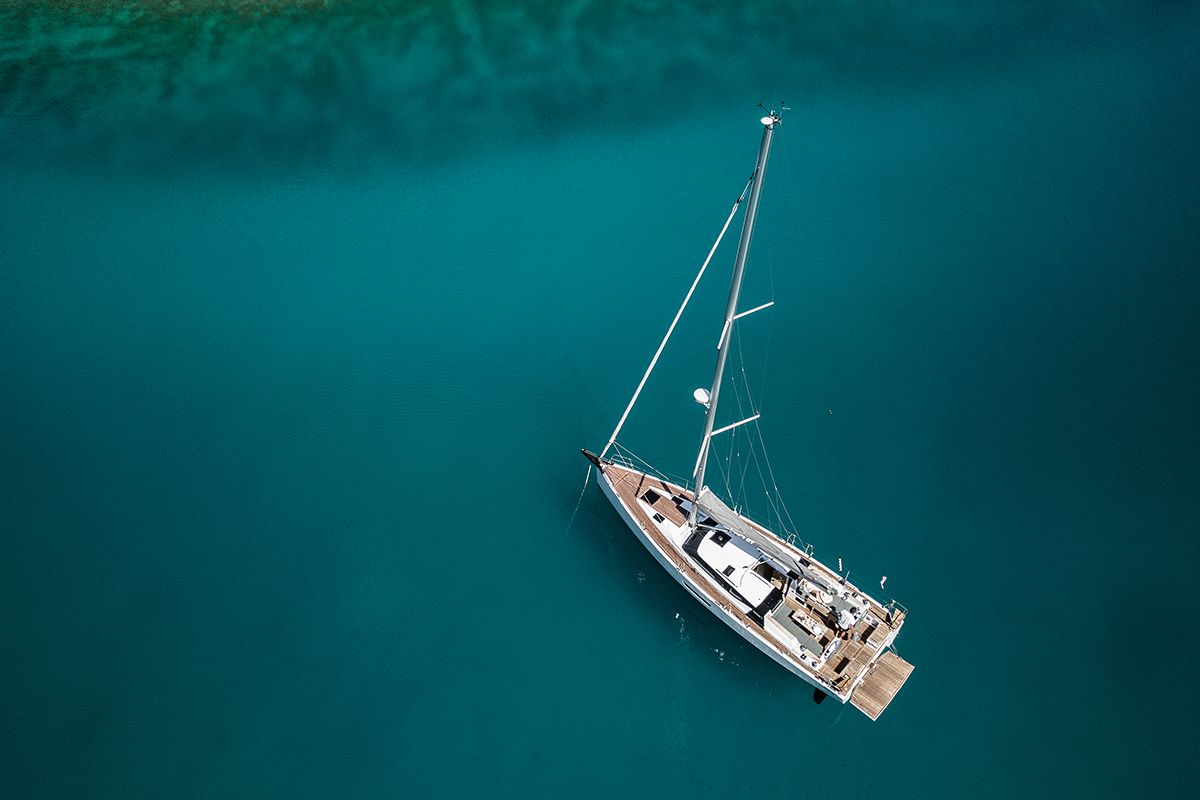

Exterior Elan GT5
With the swim platform, options of a cockpit galley featuring a fridge, grill and other amenities common on much larger yachts, the GT5 cockpit is designed for enjoying time with family and friends, offering ample seating area and different innovative cockpit table options converting the seating into a sunbathing lounge.
A clean deck design ensures fast and safe passage forward, and enables plenty of sunbathing area with dedicated cushions on the foredeck.

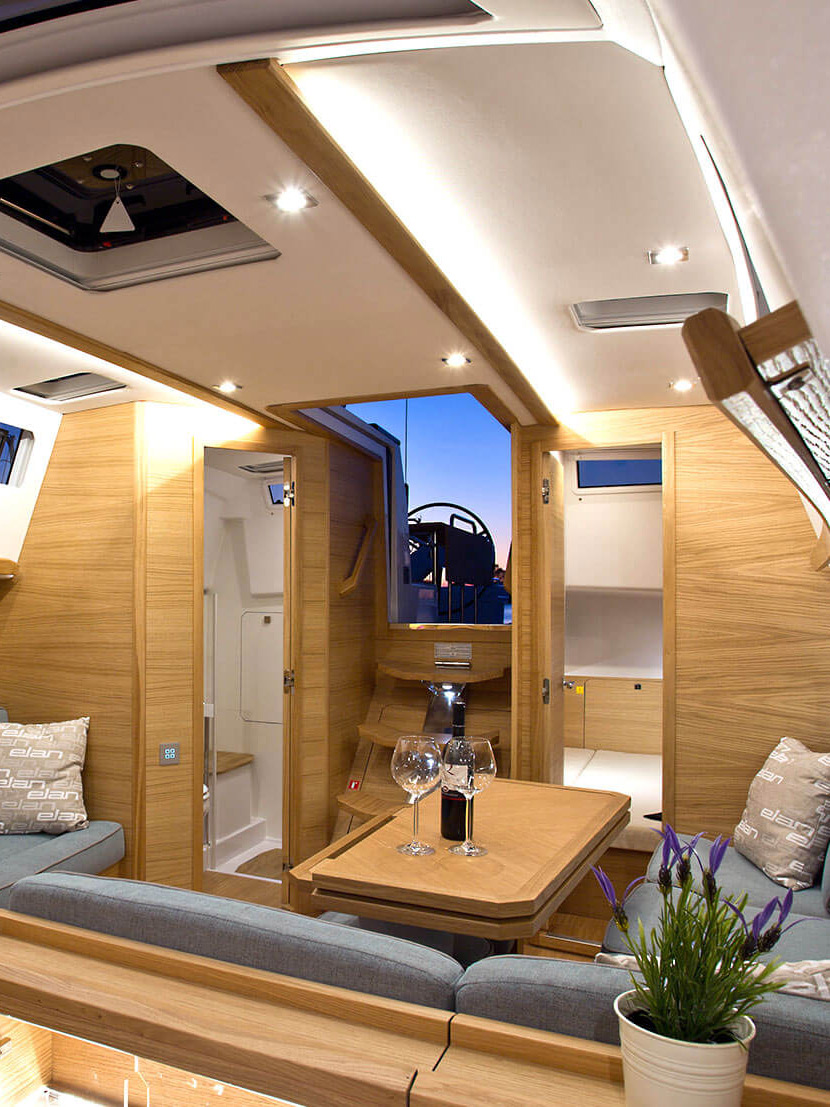

Interior Elan GT5
The space below deck is unique in her class. The Elan Design Team has implemented an inverted saloon layout featuring the galley forward, ensuring optimal utilisation of the yacht’s volume for the most comfortable and innovative saloon in her size range.
The galley forward offers ample storage space with a customisable corner to be equipped individually for each owner. The 180-degree panoramic skylight with the window in window feature, two hatches and one large central hatch allows the saloon to be ventilated at all times. The new GT5 is also the only yacht this size to offer a separate shower compartment with a 3-cabin, 2-heads interior layout.
Technical specification
Length Overall 13,20 m | 43’4’’ ft
Hull length 12,41 m | 40’9’’ ft
Length at waterline 11,58 m | 38’0’’ ft
Beam 3,91 m | 12’10’’ ft
Draft (standard) 2,45 m | 8’0’’ ft
Draft (option) 2,25 m | 7’4’’ ft / 2,45 m | 8’0’’ ft / 1,95 m | 6’5’’ ft
Light displacement 8.650 kg | 19,070 lbs
Ballast 2.655 kg | 5,855 lbs
Water capacity (standard) 220 l | 58 US gal
Water capacity (option) 490 l | 129 US gal
Fuel capacity 146 l | 39 US gal
Engine (standard) 28.3 kW / 38 HP Volvo Penta | 21.6 kW / 29 HP Yanmar
Engine Volvo (option) 37.0 kW / 50 HP
Air draft 18,39 m | 60’4’’ ft
Mainsail 44,60 m2 | 480’1’’ sq ft
Jib 34,20 m2 | 368’10’’ sq ft
Asymetric 135 m2 | 1453’1’’ sq ft
I 15,25 m | 50’0’’ ft
J 4,275 m | 14’0’’ ft
P 14,85 m | 48’9’’ ft
E 5,3 m | 17’5’’ ft
